Potable Water Treatment

Potable or drinking water is a commodity with stringent requirements of being safe and pure. Vadivel Cocotech’s range of Granular Activated Carbons (GACs) is your ideal solution in making drinking water free from taste and odour forming compounds such as MIB and geosmin, undesired colours, endocrine disrupting compounds and other micro pollutants, chlorinated hydrocarbons, Trihalomethanes and other disinfection byproducts, VOCs, pesticides and their byproducts.

We offer high quality, standard, and specially processed products with low dechlorination half values, superior flow characteristics, consistent particle size distributions to facilitate pressure drop and adsorption kinetics requirements, extensive pore structures with an ideal balance of both adsorption and transport pores, and high mechanical strength resulting in minimal operational and pressure drop issues. These superior features have made our granular carbon products the industry choice for Point of Use (POU) and Point of Entry (POE) water filters.

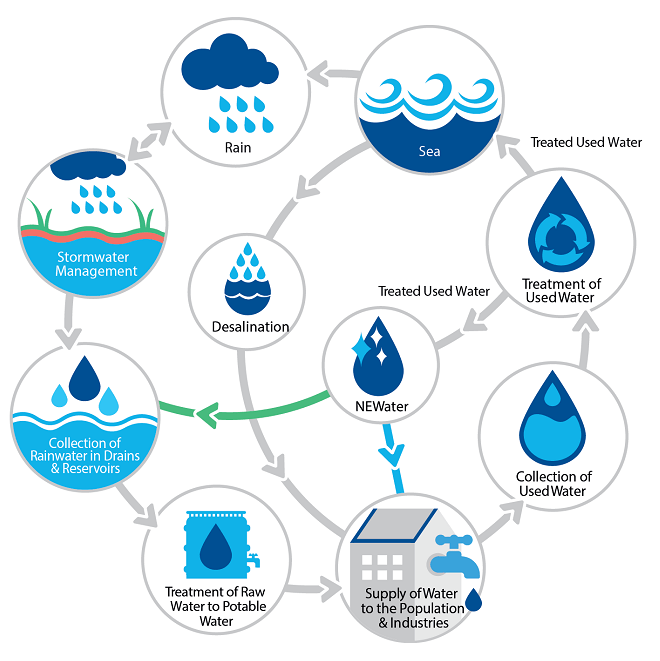

Municipality Water Treatments

In the treatment of municipal water, removal of organics including VOCs, inorganics and toxins inherent in the rivers, lakes, reservoirs and other surface water sources and ground water systems is essential. Vadivel Cocotech has introduced a tailor made series of products for surface and ground water treatment in municipality water treatment systems to deliver consistent performance in removing these contaminants.

These products are also geared to adsorb hazardous pesticide and herbicide residues, chlorinated hydrocarbons, disinfectant by products, inhibitory compounds for biological treatment systems, non-biodegradable organic compounds, and undesired coloured and smell compounds. Our carbons are effective in lowering of Biochemical Oxygen Demand (BOD), Chemical Oxygen Demand (COD), Total Organic Content (TOC) and toxicity. In addition, the high purity of the carbon products prevents the release of contaminants that may damage sensitive membrane systems used in other in-process filtration systems. We also offer custom designed products and total purification solutions to best suit your requirement.

MWFM 50 – 12x40

  • Butane Adsorption (% by wt) Min: 19.5 ASTM
  • Iodine Number (mg/g) Min: 1050
  • ASTM Apparent Density (g/L) Min: 500 ASTM
  • Moisture (% wt/wt) Max: 5 ASTM
  • Ash (% wt) Max: 3 ASTM
  • pH 7-10 ASTM
  • Particles size 12×40 US mesh ASTM
    > 12 mesh ( 1.70 mm ) (% wt/wt) Max: 5
    12×40 mesh ( 1.70 mm x 0.425 mm ) (% wt/wt) Min: 90
    < 40 mesh ( 0.425 mm ) (% wt/wt) Max: 5

MWFM 50 – 20x50

  • Butane Adsorption (% by wt) Min: 19.5 ASTM
  • Iodine Number (mg/g) Min: 1050 ASTM
  • Apparent Density (g/L) Min: 480 ASTM
  • Moisture (% wt/wt) Max: 5 ASTM
  • Ash (% wt) Max: 3 ASTM
  • pH 8-10 ASTM
  • Hardness No. min 98 ASTM
  • Particles size M325 US mesh ASTM
    > 20 mesh ( 0.85 mm ) (% wt/wt) Max: 5
    20 X 50 mesh ( 0.85 mmx 0.30 mm ) (% wt/wt) Max: 90
    < 50 mesh ( 0.30 mm ) (% wt/wt) Max: 5

MWFM 45 – 8x30

  • Butane Adsorption (% by wt) Min: 17.5 ASTM
  • Iodine Number (mg/g) Min: 1000 ASTM
  • Apparent Density (g/L) Min: 500 ASTM
  • Moisture (% wt/wt) Max: 8 ASTM
  • Ash (% wt) Max: 3 ASTM
  • pH 9-11 ASTM
  • Hardness No. Min: 98 ASTM
  • Particles size 8×30 US mesh ASTM
    > 8 mesh ( 2.36 mm ) (% wt/wt) Max: 5
    8 X 30 mesh ( 2.36 mmx 0.60 mm ) (% wt/wt) Max: 90
    < 30 mesh ( 0.60 mm ) (% wt/wt) Max: 5

MWFM 50 – 8x30

  • Butane Adsorption (% by wt) Min: 19.5 ASTM
  • Iodine Number (mg/g) Min: 1050 ASTM
  • Apparent Density (g/L) Min: 520 ASTM
  • Moisture (% wt/wt) Max: 5 ASTM
  • Ash (% wt) Max: 3 ASTM
  • pH 9-11 ASTM
  • Hardness No Min: 99 ASTM
  • Particles size 8×30 US mesh ASTM
    > 8 mesh ( 2.36 mm ) (% wt/wt) Max: 5
    8×30 mesh ( 2.36 mmx 0.60 mm ) (% wt/wt) Min: 90
    < 30 mesh ( 0.60 mm ) (% wt/wt) Max: 5

General Water Filters

Activated carbon filtration is a widely used mechanism of purifying water for drinking purposes. Vadivel Cocotech provides a broad spectrum of products for this purification requirement, tailor made to have effective adsorption capacities and rapid reaction kinetics. Our products provide the optimal pore structure to allow contaminants the maximum exposure to adsorption sites in the carbon lattice. We also offer special surface modified products for the removal of specific target contaminants such as chlorines, chloramines, sulfur compounds, MIB and geosmin, undesired colors, endocrine disrupting compounds and other micropollutants.

Our standard and specially processed products showcasing low dechlorination half values, best flow characteristics, consistent particle size distributions to facilitate pressure drop requirements, and high mechanical strength resulting in minimum operational issues.

GWFM 50 – 20x50

  • Butane Adsorption (% by wt) Min: 19.5 ASTM
  • Iodine Number (mg/g) Min: 1000 ASTM
  • Apparent Density (g/L) Min: 500 ASTM
  • Moisture (% wt/wt) Max: 5 ASTM
  • Ash (% wt) Max: 3
  • ASTM pH 9-11 ASTM
  • Hardness No. Min: 98 ASTM
  • Particles size 20×50 US mesh ASTM
    > 20 mesh ( 1.70 mm ) (% wt/wt) Max: 5
    20 X 50 mesh ( 1.70 mmx 0.60 mm ) (% wt/wt) Max: 90
    < 50 mesh ( 0.60 mm ) (% wt/wt) Max: 5

GWAW 50 – 12x30

  • Butane Adsorption (% by wt) Min: 19.5 ASTM
  • Iodine Number (mg/g) Min: 1000 ASTM
  • Apparent Density (g/L) Min: 500 ASTM
  • Moisture (% wt/wt) Max: 5 ASTM
  • Ash (% wt) Max: 1 ASTM
  • pH 6-8 ASTM
  • Hardness No. Min: 98 ASTM
  • Particles size 12×30 US mesh ASTM
    > 12 mesh ( 1.70 mm ) (% wt/wt) Max: 5
    12 X 30 mesh ( 1.70 mmx 0.60 mm ) (% wt/wt) Max: 90
    < 30 mesh ( 0.60 mm ) (% wt/wt) Max: 5

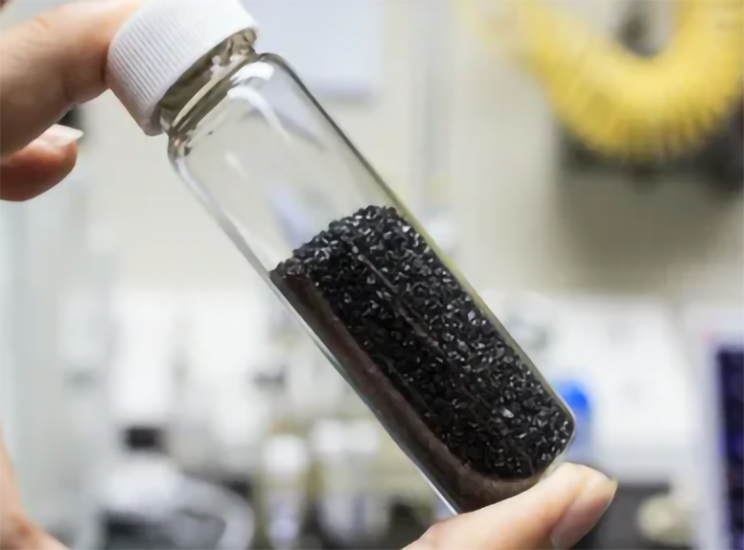

Filter Cartridges

Water filters, filter cartridges and carbon blocks are one of the most widely and effectively used water filtration technologies. Vadivel Cocotech has been a pioneer in providing carbon solutions in Point Of Use (POU) and Point Of Entry (POE) filters in industrial and home water filter applications with our carbons being the ideal purification agent in removing toxic contaminants, organic and inorganic micro pollutants, high chlorine levels, and undesired taste, colour and odour forming compounds. Vadivel Cocotech follows a state of the art manufacturing processes with controlled kiln conditions and ultramodern milling technologies.

This cutting edge technology produces a specialised range of carbon products with the ideal balance of both adsorption and transport pores, low ash, low dust, low Iron and low Chloride features, high mechanical strength, unique and consistent particle size distributions resulting in minimum operational and pressure drop issues and enhanced mechanical filtration. In addition we are able to provide specialized carbon products with surface modifications and impregnations for effective removal of specific target contaminants such as chloramines Mercury, Cadmium and other heavy metals, sulfur compounds and for bacteriostatic action.

FCFM 45 – 8x30

  • Butane Adsorption (% by wt) Min: 17.5 ASTM
  • Iodine Number (mg/g) Min: 1000 ASTM
  • Apparent Density (g/cc) Min: 0.50 ASTM
  • Moisture (% wt/wt) Max: 5 ASTM
  • Ash (% wt) Max: 3 ASTM
  • pH 9-11 ASTM
  • Hardness No Min: 98 ASTM
  • Particles size 8×30 US mesh ASTM
    > 8 mesh ( 2.36 mm ) (% wt/wt) Max: 5
    8×30 mesh ( 2.36 mmx 0.60 mm ) (% wt/wt) Min: 90
    < 30 mesh ( 0.60 mm ) (% wt/wt) Max: 5

FCFM 50 – 12x40

  • Butane Adsorption (% by wt) Min: 19.5 ASTM
  • Iodine Number (mg/g) Min: 1050 ASTM
  • Apparent Density (g/L) Min: 480 ASTM
  • Moisture (% wt/wt) Max: 5 ASTM
  • Ash (% wt) Max: 3 ASTM
  • pH 8-10
  • ASTM Hardness No Min: 98 ASTM
  • Particles size 12×40 US mesh ASTM
    > 12 mesh ( 1.68 mm ) (% wt/wt) Max: 5
    12×40 mesh ( 1.68 mm x 0.42 mm ) (% wt/wt) Min: 90
    < 40 mesh ( 0.42 mm ) (% wt/wt) Max: 5

Chloramine Removal

Chloramine, a drinking water disinfectant affects the quality of water in terms of taste and odour, while being a health hazard in high concentrations. It is also a difficult contaminant to remove at the point of use. This calls for a special selection of catalytic activated carbons. Vadivel Cocotech’s R&D arm has developed a distinctive selection of catalytic carbon products with very high reaction kinetic for the removal of chloramines from potable water which are specially designed to carry a large number of catalytic sights compared to products from other carbon suppliers to react with and remove different types of chloramines, including monochloramine.

This product series includes carbons customizable for your exact pressure drop and particle size requirement and to support your existing operation conditions. The high efficiency and consistent performance demonstrated by these products extend the bed life of the carbon whilst cutting short the required contact time, and the size of the equipment which is translated into reduced cost for you.

CLAW 50 – 12x40

  • Butane Adsorption (% by wt) Min: 19.5 ASTM
  • Iodine Number (mg/g) Min: 1050 ASTM
  • Apparent Density (g/L) Min: 500 ASTM
  • Moisture (% wt/wt) Max: 5 ASTM
  • Ash (% wt) Max: 3 ASTM
  • pH 7-10 ASTM
  • Particles size 12×40 US mesh ASTM
    > 12 mesh ( 1.70 mm ) (% wt/wt) Max: 5
    12×40 mesh ( 1.70 mmx 0.425 mm ) (% wt/wt) Min: 90
    < 40 mesh ( 0.425 mm ) (% wt/wt) Max: 5

CLAW 45 – 40x100

  • Butane Adsorption (% by wt) Min: 17.5 ASTM
  • Iodine Number (mg/g) Min: 1000 ASTM
  • Apparent Density (g/L) Min: 500 ASTM
  • Moisture (% wt/wt) Max: 4 ASTM
  • Ash (% wt) Max: 3 ASTM
  • pH 7-10 ASTM
  • Particles size 40×100 US mesh ASTM
    > 40 mesh ( 0.425 mm ) (% by wt) Max: 5 ASTM
    40×100 mesh ( 0.425 mm x 0.150 mm ) (% by wt) Min: 90 ASTM
    < 100 mesh ( 0.150 mm ) (% by wt) Max: 5 ASTM

Soil Water Treatment

Due to extensive usage of organic and inorganic compounds in agriculture, the soil water in some areas is highly polluted. Removing these contaminants, mostly VOCs and chlorinated hydrocarbons which are in a very stable state in soil water, has become an enormous task. As a remediation, Vadivel Cocotech Activated Carbons are recommended for use either as a stand-alone treatment unit or in conjunction with other treatment units as a part of a multistage system.

Our carbons are capable of reducing TOC (Total Organic Carbons), TOX (Total Organic Halides), VOC (Volatile Organic Compounds) and DOC (Dissolved Organic Compounds) in soil water. Vadivel Cocotech Activated Carbon technology and assurance of quality ensures a consistently high performance in terms of capacity, rate of adsorption and long working life in the circuit.

SWFM 1050 – 8x30

  • Iodine Number (mg/g) Min: 1050 ASTM
  • Apparent Density (g/L) Min: 480 ASTM
  • Moisture (% wt/wt) Max: 5 ASTM
  • Ash (% wt) Max: 3 ASTM
  • pH 9-11 ASTM
  • Hardness Number Min: 98 ASTM
  • Particles size 8×30 US mesh ASTM
    > 8 mesh ( 2.36 mm ) (% by wt) Max: 5
    8×30 mesh ( 2.36 mm x 0.60 mm ) (% by wt) Min: 90
    < 30 mesh ( 0.60 mm ) (% by wt) Max: 5

SWFM 50 – 12x40

  • Butane Adsorption (% by wt) Min: 19.5 ASTM
  • Iodine Number (mg/g) Min: 1050 ASTM
  • Apparent Density (g/L) Min: 540 ASTM
  • Moisture (% wt/wt) Max: 5 ASTM
  • Ash (% wt) Max: 3 ASTM
  • pH 9-11 ASTM
  • Hardness Number Min 98 ASTM
  • Particles size 12×40 US mesh ASTM > 12 mesh ( 1.70 mm ) (% by wt) Max: 5 12×40 mesh ( 1.70 mm x 0.425 mm ) (% by wt) Min: 90 < 40 mesh ( 0.425 mm ) (% by wt) Max: 5
➤
