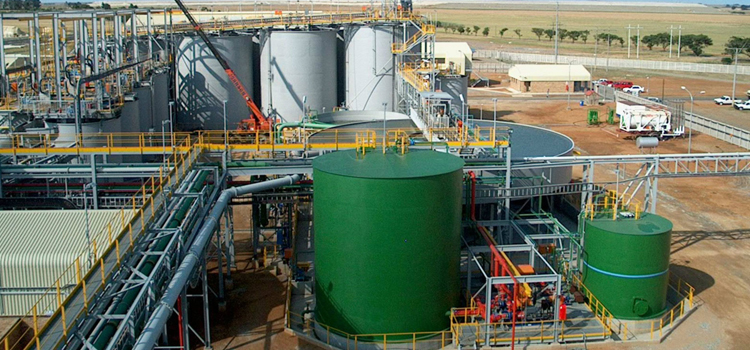

Heap Leach Gold Extraction

Heap leaching technology is used in the extraction of precious metals such as gold from the natural ore. Vadivel Cocotech Activated Carbon gold series offers coconut shell based tailor-made products for heap leach gold extraction manufactured using cutting edge activation and processing technologies.

These carbon products are of high hardness and resistance to abrasion with very high and lasting gold adsorption kinetics and gold loading capacity ensuring effective and efficient adsorption with minimum loss of gold.

HLPL 60 – 8x16

  • Butane Adsorption (% by wt) Min:23.5 ASTM
  • Iodine Number (mg/g) Min: 1150 ASTM
  • Apparent Density (g/L) Min: 480 ASTM
  • Moisture (% wt/wt) Max: 5 ASTM
  • Ash (% wt) Max: 3 ASTM
  • pH 9-11 ASTM
  • Hardness No. Min: 99 ASTM
  • Platelet Content (% by wt) Max: 5 AARL
  • Particles size 8×16 US mesh ASTM
    > 8 mesh (2.36 mm) (% by wt) Max: 5 ASTM
    8×16 (2.36 mm x 1.18 mm) (% by wt) Min: 90 ASTM
    < 16 mesh (1.18 mm) (% by wt) Max: 5 ASTM

HLPL 55 – 12x30

  • Butane Adsorption (% by wt) Min:21.5 ASTM
  • Iodine Number (mg/g) Min: 1100 ASTM
  • Apparent Density (g/L) Min: 500 ASTM
  • Moisture (% wt/wt) Max: 5 ASTM
  • Ash (% wt) Max: 3 ASTM
  • pH 9-11 ASTM
  • Hardness No. Min: 99 ASTM
  • Platelet Content (% by wt) Max: 5 AARL
  • Particles size 12×30 US mesh ASTM
    > 12 mesh (1.70 mm) (% by wt) Max: 5 ASTM
    12×30 (1.70 mm x 0.60 mm) (% by wt) Min: 90 ASTM
    < 30 mesh (0.60 mm) (% by wt) Max: 5 ASTM
➤
